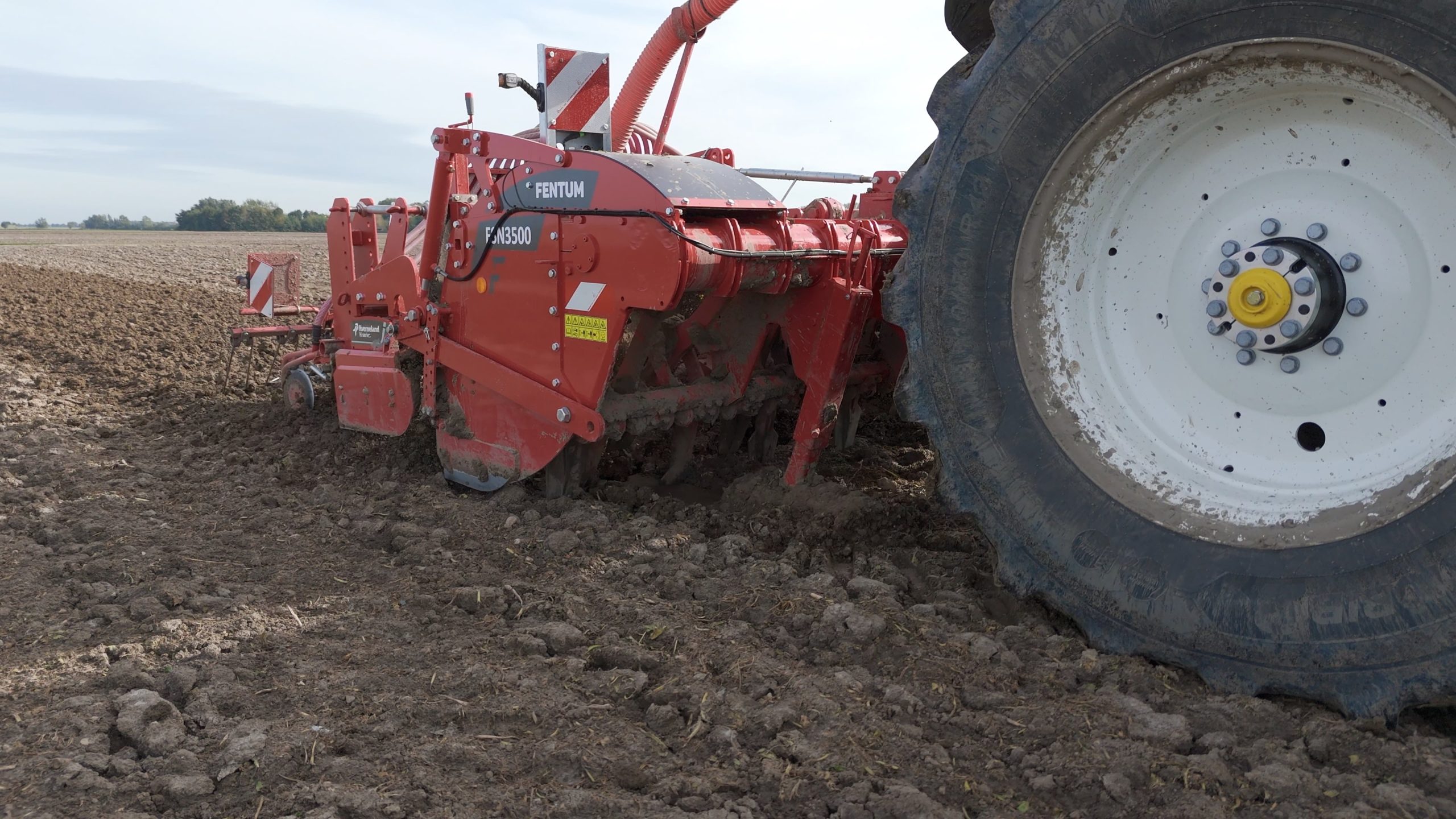

Spading Machine
Technical data
Two working widths, spaded across the full width — including the centre at the gearbox.
| FSN 3000 | FSN 3500 | |
|---|---|---|
| Working width | 3.00 m | 3.50 m |
| Working depth | 0–40 cm, stepless via spindles | 0–40 cm, stepless via spindles |
| Weight | 2,256 kg | 2,696 kg |
| Drive | PTO, crankshaft principle | PTO, crankshaft principle |
| Working speed | approx. 3.5 km/h | approx. 3.5 km/h |
| Capacity spading + sowing | approx. 15 ha per day (at 3.5 km/h) | approx. 15 ha per day or more |
| Rear implement linkage | Cat III (hydraulic or mechanical) | Cat III (hydraulic or mechanical) |
| Bearings | Maintenance-free | Maintenance-free |
| Skid plates | Hardox, easy to replace | Hardox, easy to replace |
| Spades | Wear-resistant cast steel (hardened optional) | Wear-resistant cast steel (hardened optional) |
Required tractor power depends on soil type, working depth and rear implement — we are happy to advise based on your situation.

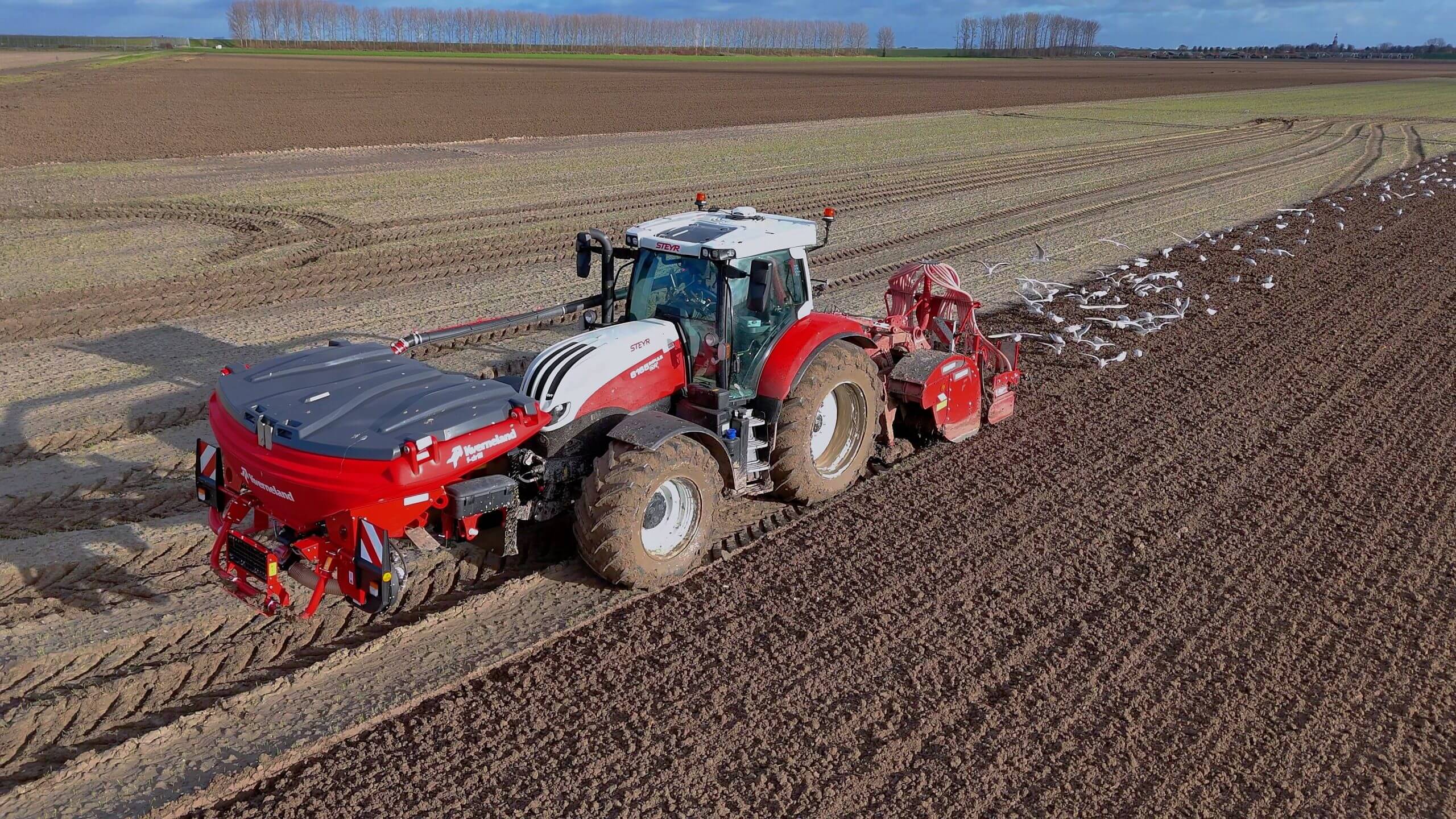

Spading and sowing in one pass
The Fentum spading machine saves time and money by making spading and sowing in one pass possible. It is a solid and reliable machine, built with high-quality components and maintenance-free bearings. The spacious frame prevents clogging, even in heavy clay.
Download brochure (Dutch)

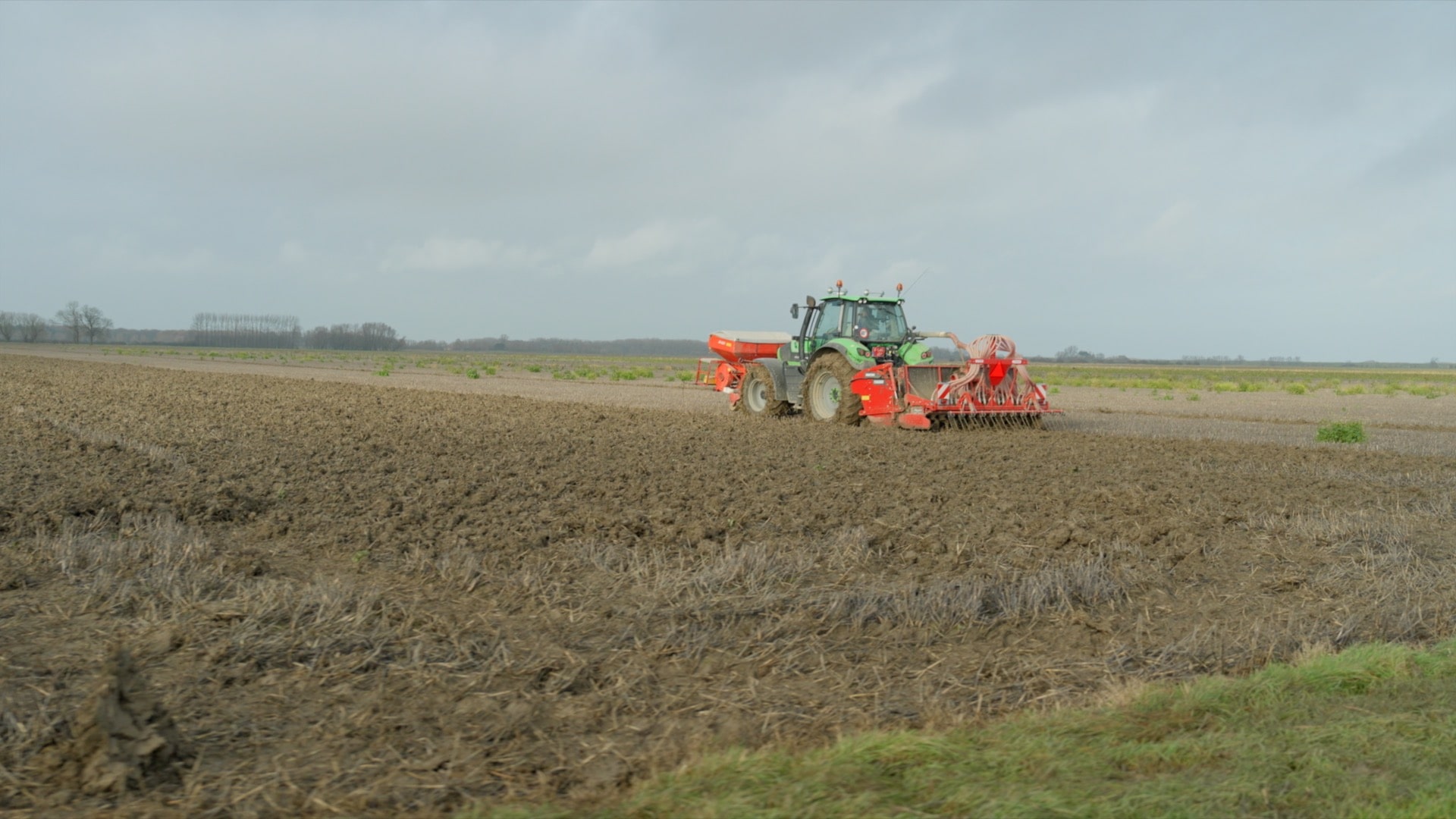

Why spade?
Spading with the Fentum spading machine improves water uptake and increases yield. The machine only works the topsoil, so organic matter is preserved and soil life is disturbed as little as possible. Spading enriches the topsoil with nutrients and prevents smearing or compaction in the layer below.
More oxygen in the soil promotes root growth and stimulates soil life. Better drainage and a richer soil lead to higher yields and better crop quality.
More informationSavings
The Fentum spading machine is economically attractive because it combines spading and sowing in one pass. This not only saves costs but also increases efficiency. The machine uses less fuel compared to traditional ploughing, harrowing and sowing.
Reliability
The Fentum spading machine is reliable in all conditions, thanks in part to high-quality components and maintenance-free bearings. It is equipped with wear-resistant cast steel spades that perform durably, even under heavy conditions.
Tillage
With its spacious frame, the Fentum spading machine prevents soil from sticking, so cleaning out by hand is a thing of the past. The machine has an effective working width of 3.0 and 3.5 metres and a variable depth setting via stepless spindles.
"We are much more efficient this way. We sometimes spade and sow nearly 15 hectares in one day — with ploughing and sowing that was unthinkable with one driver!"
— Loonbedrijf Guiljam, Sint Annaland
Read more →
Options
Side plate set
Side plate set
This set of two height-adjustable side plates helps prevent soil being thrown out at the sides, especially when spading shallow.

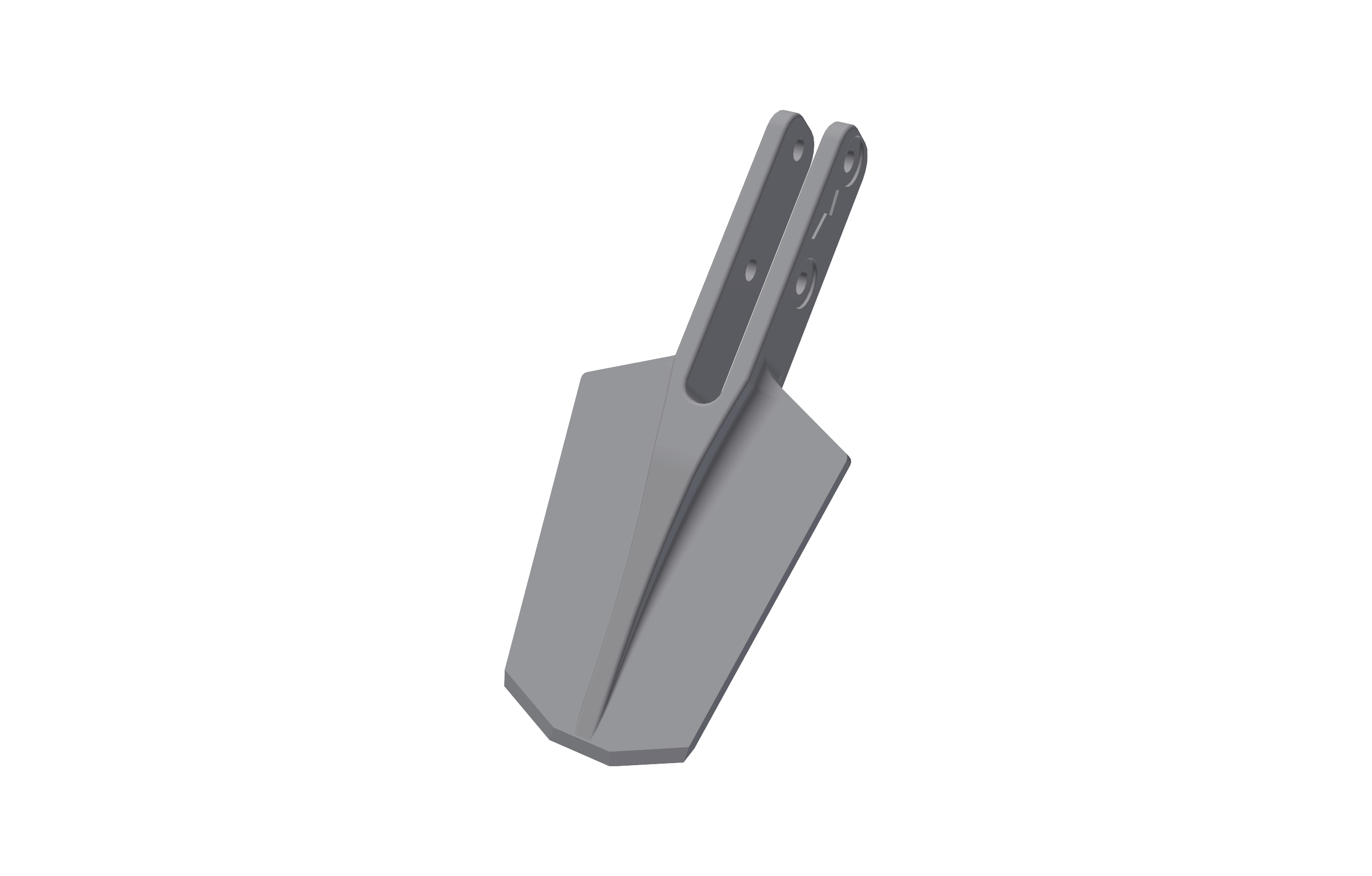

Hardened spade set
Hardened spade set
This set of hardened spades offers a longer service life, resulting in less time spent changing spades.

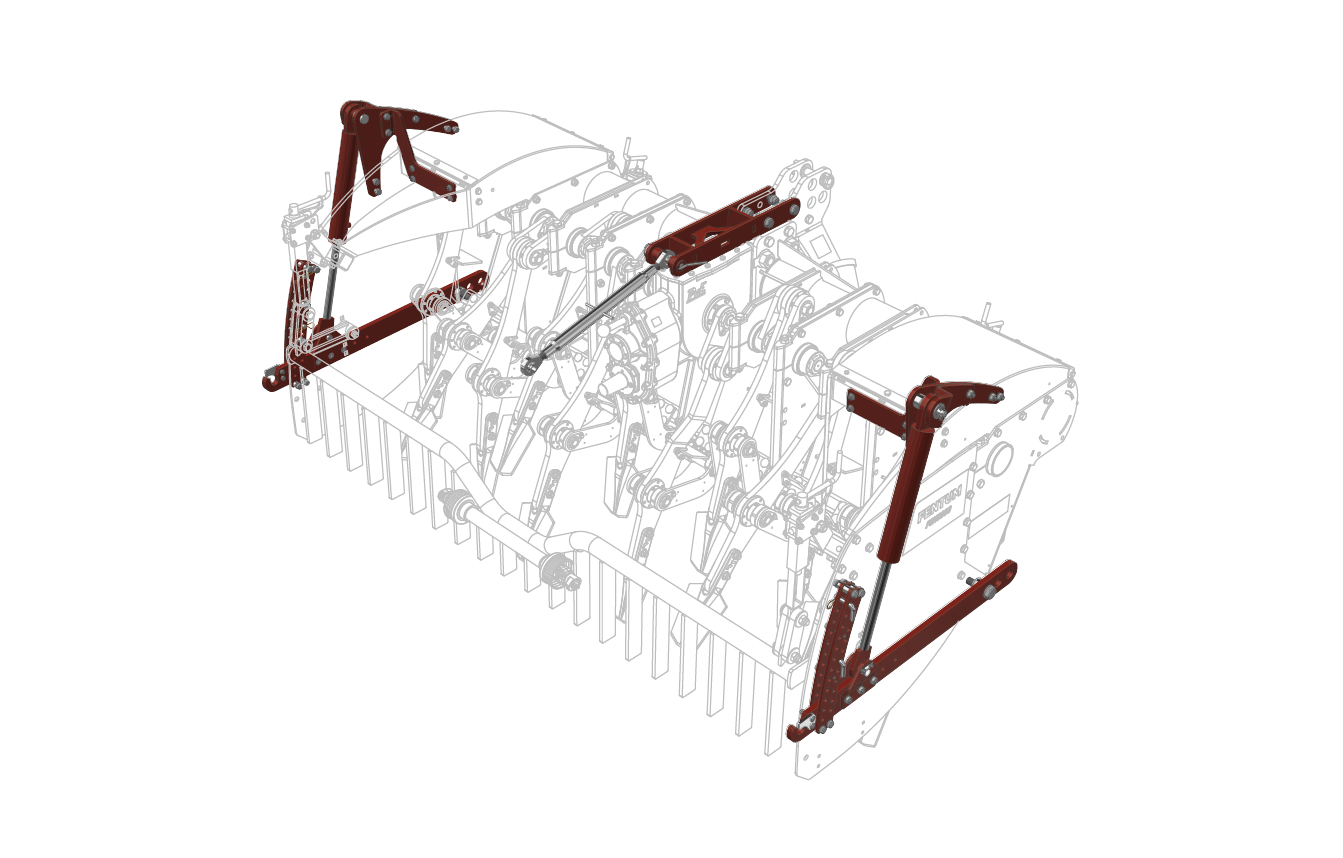

Hydraulic side linkage behind spading machine
Hydraulic side linkage behind spading machine
The Fentum spading machine has a hydraulic linkage with two side arms, each fitted with a Cat III quick coupler. A stop pin sets depth and height to within 2 cm.

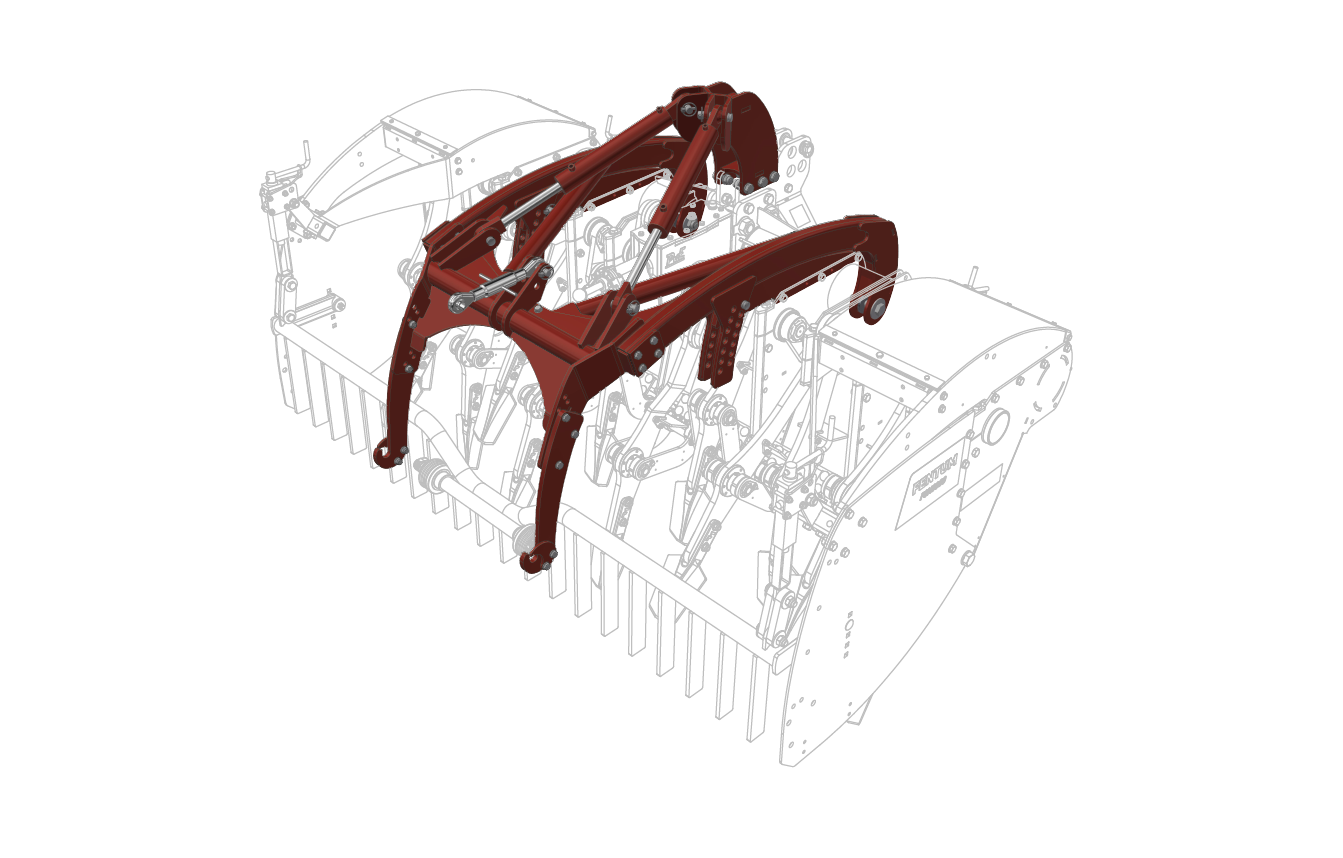

Hydraulic over-the-top 3-point linkage
Hydraulic over-the-top 3-point linkage
The Fentum spading machine has a hydraulic over-the-top 3-point linkage, making it suitable for any rear implement. Depth and height are adjustable with a stop pin to within 4 cm.
Mechanical 3-point through linkage
Mechanical 3-point through linkage
The Fentum spading machine is fitted with a mechanical 3-point through linkage, making it easy to attach rear implements without obstructing the view.

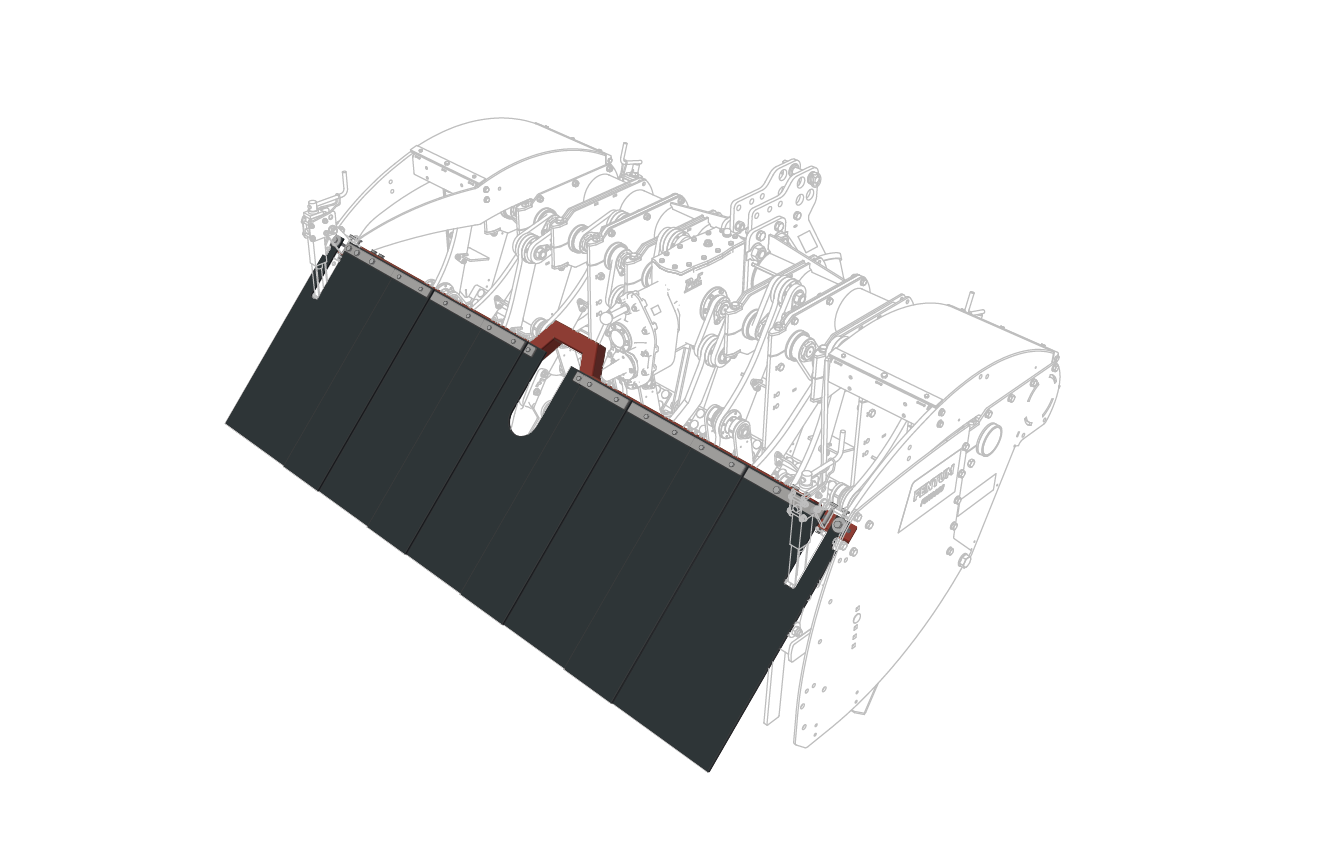

Rubber flaps above the clod rack
Rubber flaps above the clod rack
Above the clod rack, the Fentum spading machine has loose rubber flaps that move independently, so soil is less likely to stick.

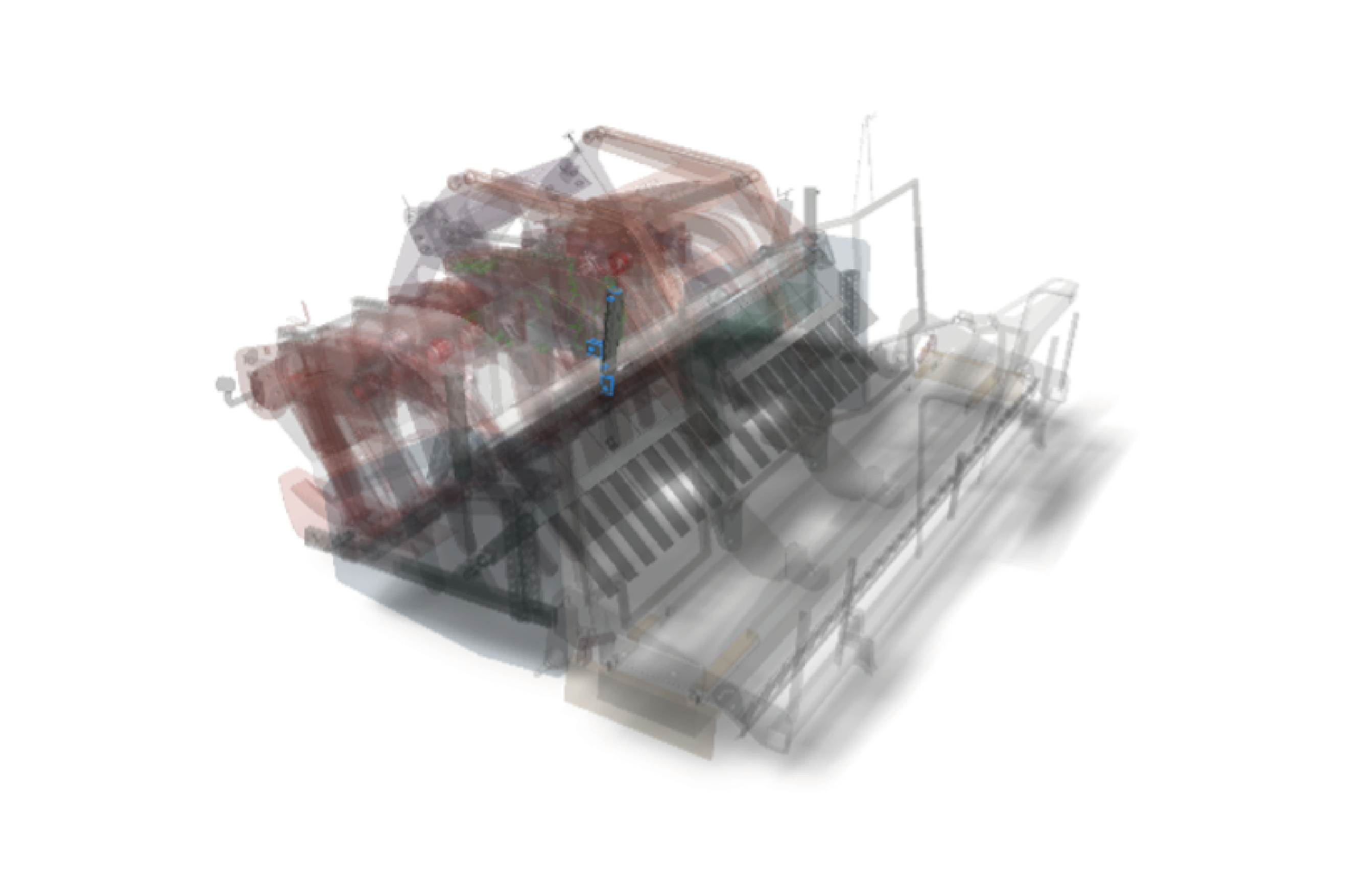

Hydraulic adjustment of clod rack
Hydraulic adjustment of clod rack
The standard clod rack, operated with threaded spindles, can optionally be hydraulically controlled from the cab for easy height adjustment.

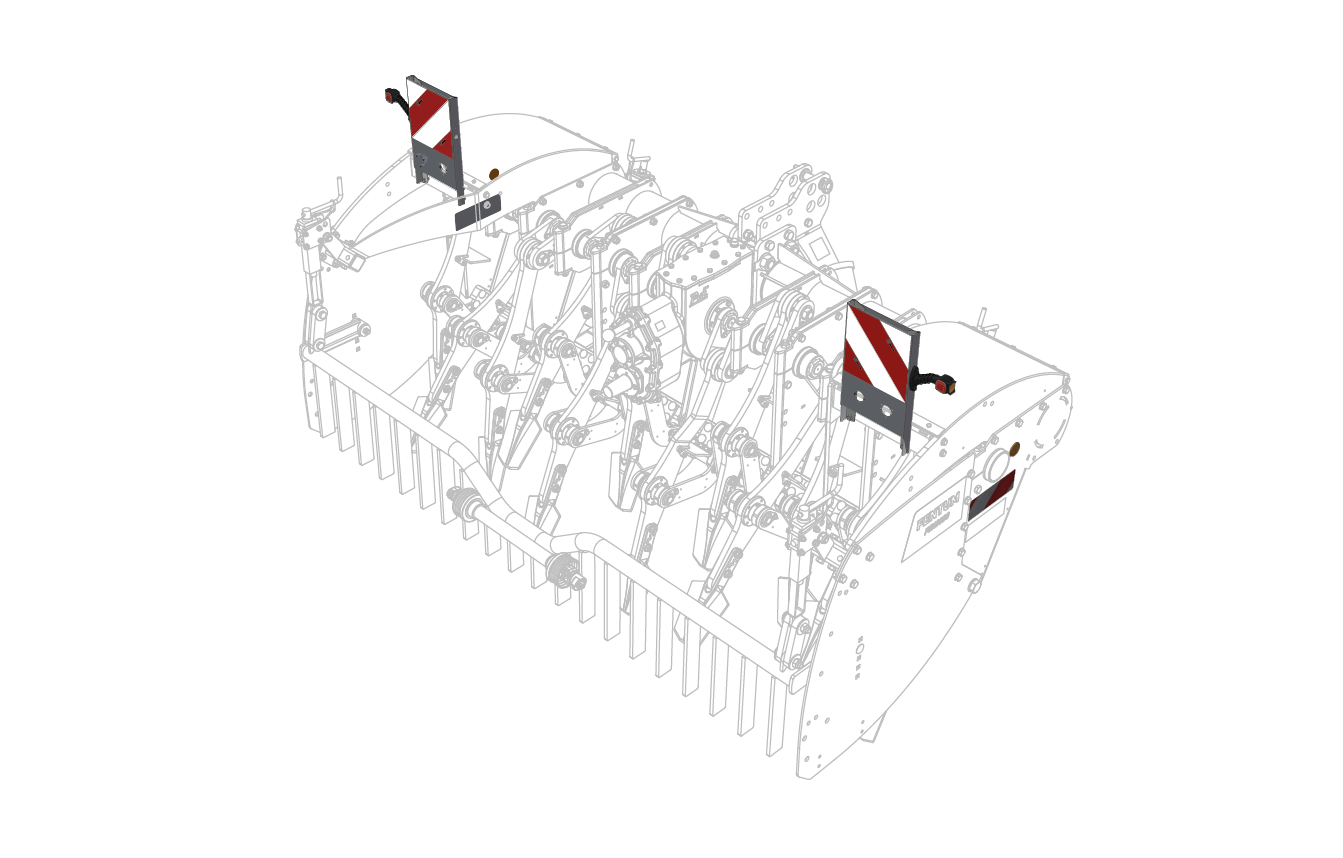

Lighting kit
Lighting kit
This option equips the Fentum spading machine with LED lights and LED-lit marker boards, complete with a 7-pin socket.

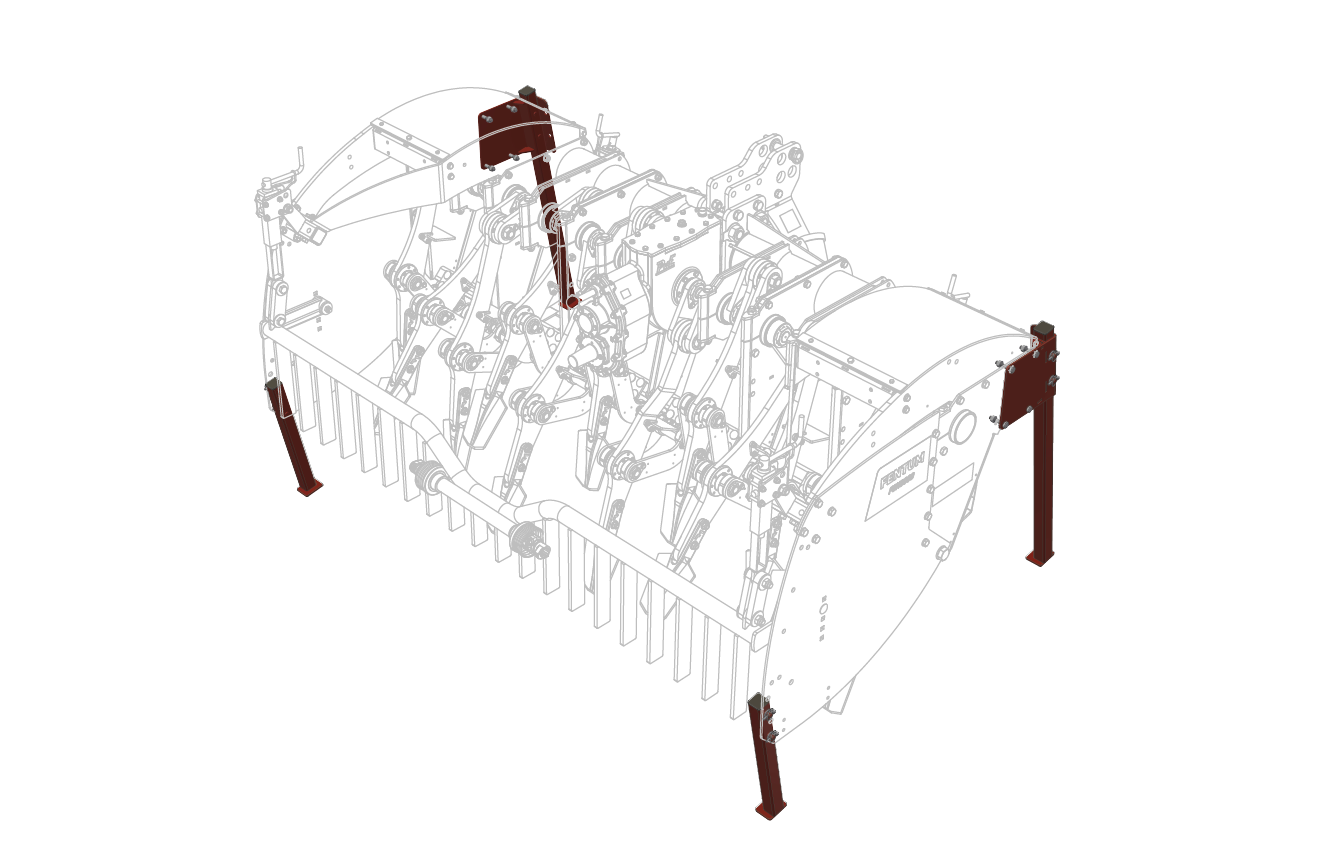

Support leg set
Support leg set
With this set of support legs, the Fentum spading machine — including mounted power harrow and seeding bar — can easily be parked and coupled or uncoupled.
Side plate set
Side plate set
This set of two height-adjustable side plates helps prevent soil being thrown out at the sides, especially when spading shallow.
Hardened spade set
Hardened spade set
This set of hardened spades offers a longer service life, resulting in less time spent changing spades.
Hydraulic side linkage behind spading machine
Hydraulic side linkage behind spading machine
The Fentum spading machine has a hydraulic linkage with two side arms, each fitted with a Cat III quick coupler. A stop pin sets depth and height to within 2 cm.
Hydraulic over-the-top 3-point linkage
Hydraulic over-the-top 3-point linkage
The Fentum spading machine has a hydraulic over-the-top 3-point linkage, making it suitable for any rear implement. Depth and height are adjustable with a stop pin to within 4 cm.
"We are ready for the coming autumn, regardless of the weather."
Maatschap Meijer-Risseeuw, specialised in potatoes, sugar beet, cereals, grass seed and vining peas, invested in a complete Fentum spading-seeding combination in 2023.
Martijn's story
Want to see what it does on your soil?
We bring the machine to your field, set it up for your soil type and you drive it yourself. No obligation.
